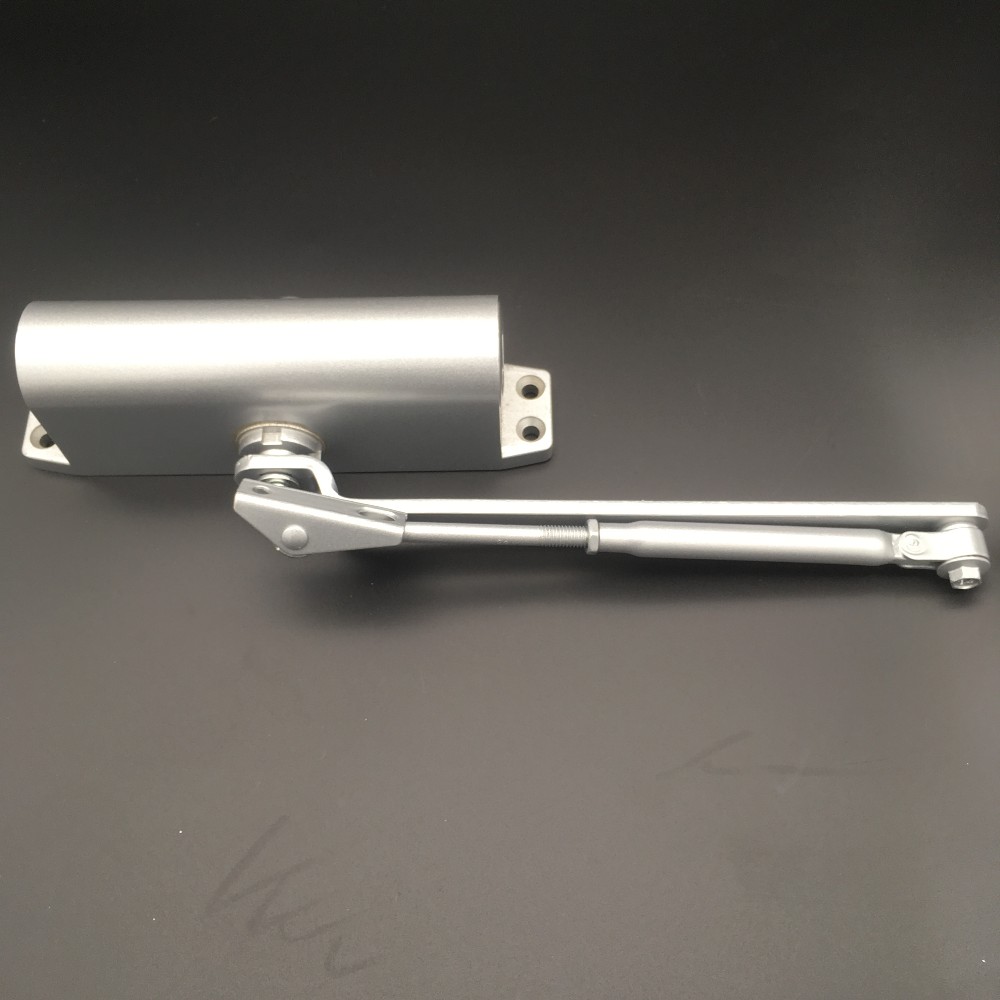

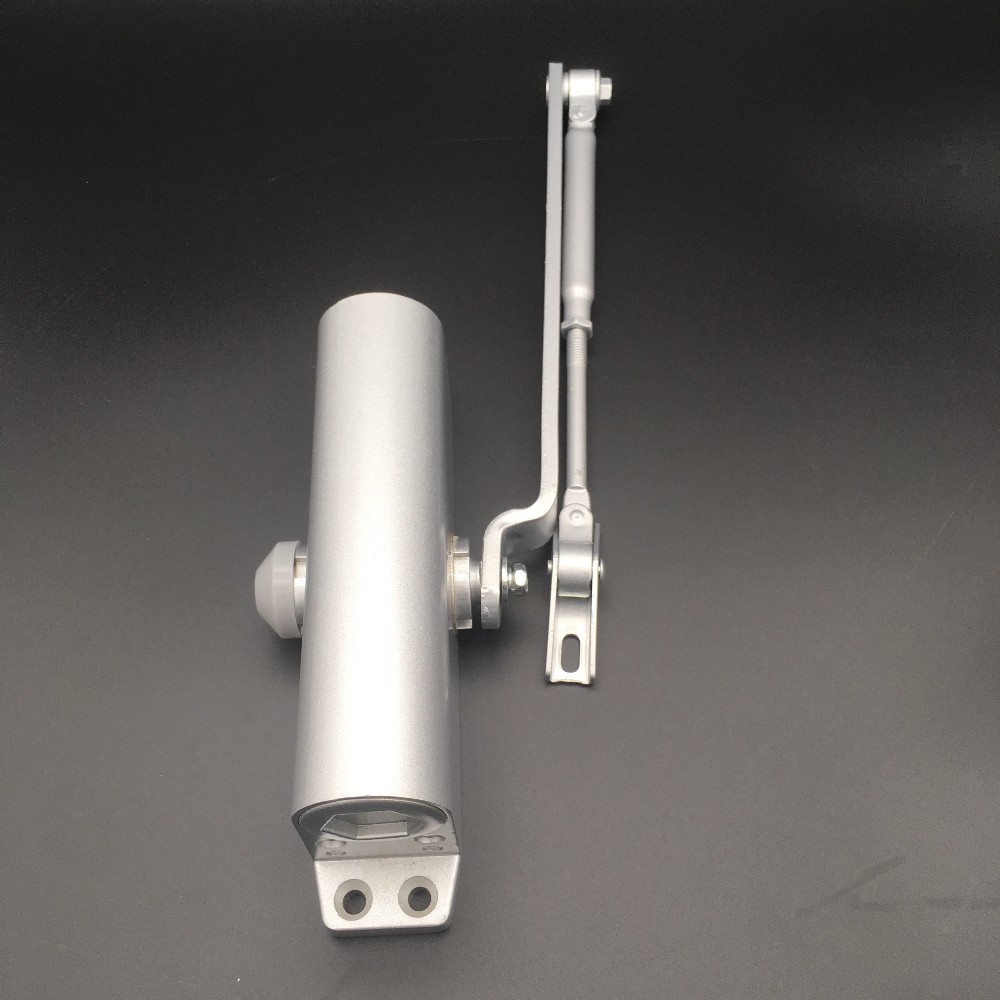

A. Economic type door closer of residential and commercial
B. Performance standard: QB/T 2698-2013
C. Two speed control valve,adjusting closing speed and latching speed
D. ADC12 environmental production of aluminum alloy casting body
Sign In | Join Free | My xxjcy.com |
|
Warranty : 1 Year
After-sale Service : Online technical support, Return and Replacement
Project Solution Capability : graphic design, Others
Place of Origin : Guangdong, China
Brand Name : TAKY
Model Number : TK-051A
Product Name : Euro Type Sliding Door Hinge Soft Closer
Color : Sliver or Customized
Max door weight : 40-60kg
Application : Fire Door
Door size : More than 1200mm
Temperature : -40 degree-60 drgree
packing : 1pcs in a inter box 10 pcs in a big outer box
Used : all metal&steel&plastic door
Finish : Satin Polish
Operation : Safe Application Standard Glass Door Closer
Packaging Details : 1pcs in a inter box 10 pcs in a big outer box.
Price : $10.95/pieces 1-499 pieces
Function of Door Closer:
◆automatic closing ;
◆closing speed can be adjusted ;
◆ some door closer have the function of staying.
Scope of Application:
The door closer is only suitable for one-way casement doors
and is generally not used for frameless glass doors.
A. Economic type door closer of residential and commercial
B. Performance standard: QB/T 2698-2013
C. Two speed control valve,adjusting closing speed and latching speed
D. ADC12 environmental production of aluminum alloy casting body
E. Power Size EN4/5
F. Positioning Function Optional
G. Back-check function Optional
H. Manufactured under strict observation of EN1154 standard
1.Cycle test: up to 500,000 cycles
2.Hydraulic oil: low-temperature resistance to -45℃
3.Rocker arm: made of good quality carbon steel material, not easily deformed or broken
4.Surface: double painted with anti-corrosion material, 96 hours corrosion resistance
Item No. | TK-051A | |
Closing force: | EN 3/4/5 | |
Maximum wide door leaf: | <1200mm | |
Maximun Opening angle | 180 degree | |
Avallable bearing weight: | 40-60kg | |
Speed governing control: | Two atage adjustable speed | |
Orienting Function | Location or without location is optional | |
Useful TIme | > 500.000times | |

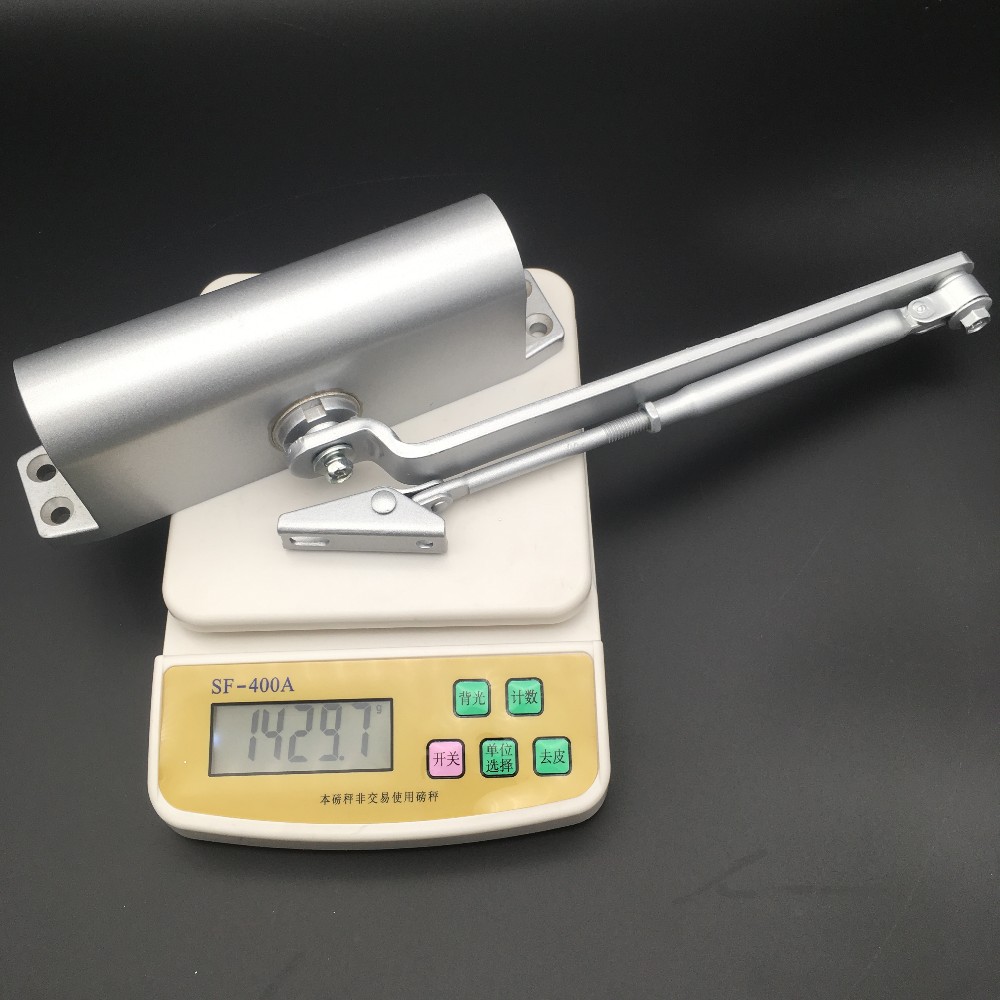

Net weight | 1429g | |
Accord with national QB/T2698-2005 Standard |
Made of 45# high-quality carbon structural steel, the gear part is cold extruded, the gear and the shaft at both ends are quenched, and the surface hardness is more than HRC48, which makes the product more wear-resistant and has a longer service life.
60-silicon 2 manganese combined alloy springs have more endurance and tension than other carbon steels, ensuring 5 million times of use without deformation
The imported FUCHS ensures that the door closer can work better between 40 degrees and 60 degrees, does not erode the sealing ring, has high stability and better lubrication effect.
More prominent details of the production, the use of imported German seals, corrosion resistance, the use of temperatures of minus 40 to 100 degrees, more guarantees no oil leakage.

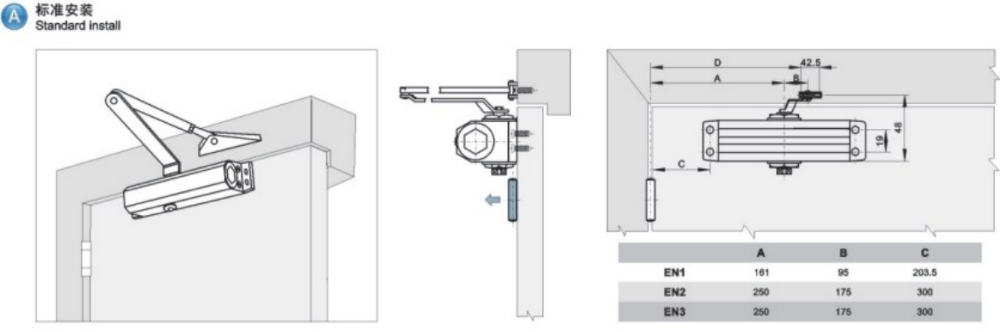

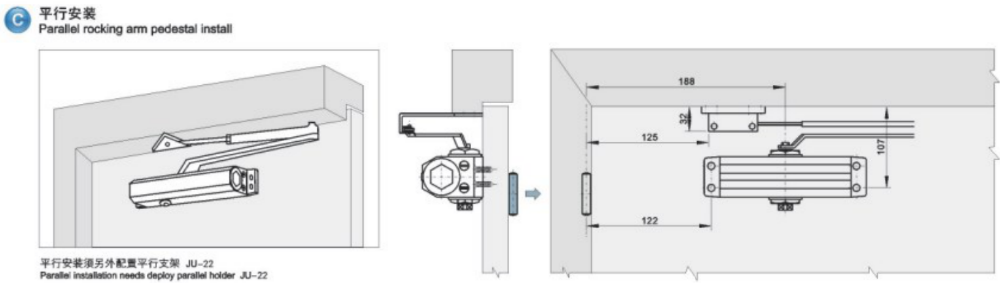

The door closer is only suitable for one-way casement doors
and is generally not used for frameless glass doors.
Top 8 Things You Should Know About TAKY: | ||
1 .The product base of ISO2000 quality certification | 2. 0.005mm high precision machining | |
3. The most advanced vacuum loading technology | 4. The most advanced automatic printing line | |
5. Pass CE certificate and fireproof testing | 6. Over 500,000 times open and close testing | |
7. More then 96 hours salt spray corrosion test | 8. 100% inspection |

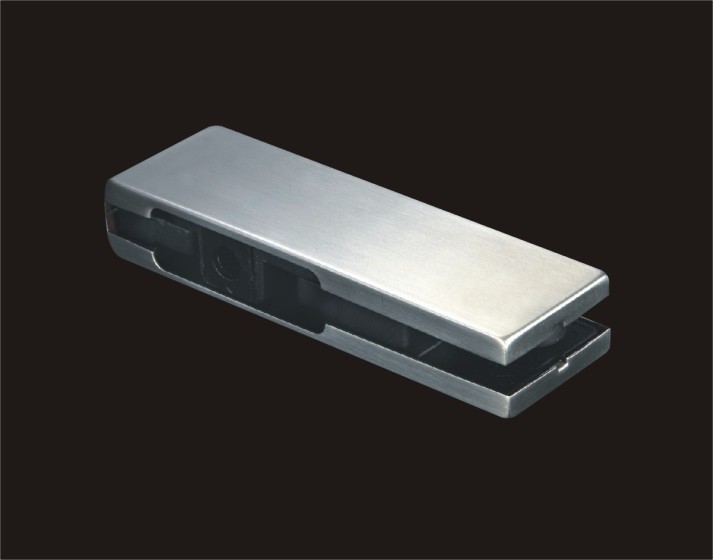

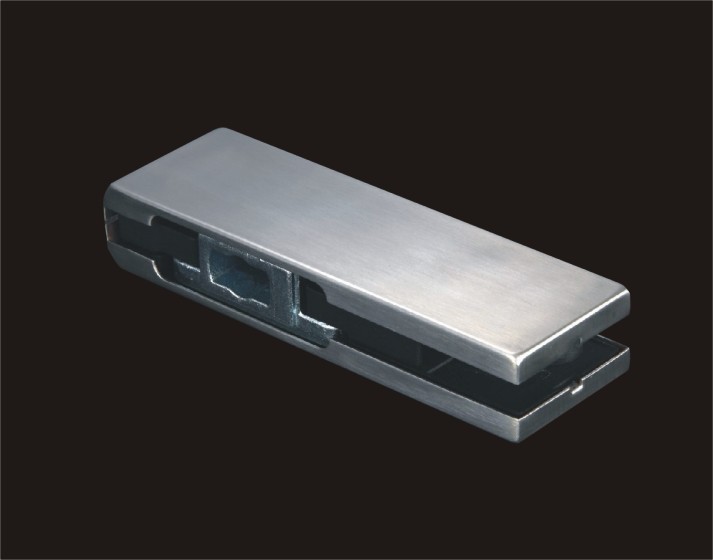

Top Square Door Clamp
